Setup

commonfate/ecs-exec-sso@v1-alpha1

Example granted_deployment.yml

version: 2
deployment:
  stackName: example
  account: "12345678912"
  region: ap-southeast-2
  release: v0.12.0
  parameters:
    CognitoDomainPrefix: example
    AdministratorGroupID: granted_administrators
    ProviderConfiguration:
      ecs-exec-sso:
        uses: commonfate/ecs-exec-sso@v1-alpha1
        with:
          ecsClusterArn: ""
          ecsRegion: ""
          ecsRoleArn: ""
          identityStoreId: ""
          instanceArn: ""
          ssoRegion: ""
          ssoRoleArn: ""

Find the AWS SSO instance details

Configuration Fields

This step will guide you through collecting the values for these fields required to setup your provider.

Field	Description
identityStoreId	The AWS SSO Identity Store ID
instanceArn	The AWS SSO Instance ARN
ssoRegion	The region the AWS SSO instance is deployed to

Using the AWS CLI

If you have the AWS CLI installed and can access the account that your AWS SSO instance is deployed to, run the following command to retrieve details about the instance:

aws sso-admin list-instances

You will see an output similar to the following:

{
    "Instances": [
        {
            "InstanceArn": "arn:aws:sso:::instance/ssoins-1234567890",
            "IdentityStoreId": "d-1234567890"
        }
    ]
}

The InstanceArn value in the CLI output should be provided as the instanceArn parameter when configuring the provider.

The IdentityStoreId field in the CLI output should be provided as the identityStoreId parameter when configuring the provider.

If your AWS SSO instance is deployed in a separate region to the region that Common Fate is running in, set the region parameter to be the region of your AWS SSO instance (e.g. 'us-east-1').

Using the AWS Console

Open the AWS console in the account that your AWS SSO instance is deployed to. If your company is using AWS Control Tower, this will be the root account in your AWS organisation.

Visit the Settings tab. The information about your SSO instance will be shown here, including the Instance ARN (as the “ARN” field) and the Identity Store ID.

Locating your ECS Resources

Configuration Fields

This step will guide you through collecting the values for these fields required to setup your provider.

Field	Description
ecsClusterArn	The ARN of the ECS Cluster to provision access to
ecsRegion	The region the ecs cluster instance is deployed to

Locating your ECS Cluster

Locate your chosen ecsClusterArn by running the following command:

> aws ecs list-clusters
{
    "clusterArns": [
        "arn:aws:ecs:ap-southeast-2:1234567890:cluster/MyFirstCluster",
        "arn:aws:ecs:ap-southeast-2:1234567890:cluster/MySecondCluster",
        "arn:aws:ecs:ap-southeast-2:1234567890:cluster/MyThirdCluster",
    ]
}

Copy in the ARN of the ECS cluster you want to set up the Access Provider for.

Enter the region where your cluster is deployed.

Create a SSO IAM role

Configuration Fields

This step will guide you through collecting the values for these fields required to setup your provider.

Field	Description
ssoRoleArn	The ARN of the AWS IAM Role with permission to administer SSO

This Access Provider requires permissions to manage your SSO instance.

The following instructions will help you to setup the required IAM Role with a trust relationship that allows only the Common Fate Access Handler to assume the role.

This role should be created in the root account of your AWS organization. This is the account where AWS SSO is configured and your AWS Organization is managed.

Copy the following YAML and save it as 'common-fate-access-handler-ecs-exec-sso-role.yml'.

We recommend saving this alongside your deployment.yml file in source control.

Resources:
  CommonFateAccessHandlerSSORole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Statement:
          - Action: sts:AssumeRole
            Effect: Allow
            Principal:
              AWS: "{{ Access Handler Execution Role ARN }}"
        Version: "2012-10-17"
      Description: This role grants management access to AWS SSO for the Common Fate Access Handler.
      Policies:
        - PolicyDocument:
            Statement:
              - Action:
                  - sso:DescribeAccountAssignmentDeletionStatus
                  - sso:DescribeAccountAssignmentCreationStatus
                  - sso:DescribePermissionSet
                  - sso:ListPermissionSets
                  - sso:ListTagsForResource
                  - sso:ListAccountAssignments
                  - organizations:ListAccounts
                  - organizations:DescribeAccount
                  - organizations:DescribeOrganization
                  - iam:GetSAMLProvider
                  - iam:GetRole
                  - iam:ListAttachedRolePolicies
                  - iam:ListRolePolicies
                  - identitystore:ListUsers
                  - iam:ListRoles
                  - iam:ListUsers
                Effect: Allow
                Resource: "*"
                Sid: ReadSSO
              - Action:
                  - sso:DeletePermissionSet
                  - sso:DeleteAccountAssignment
                  - sso:CreatePermissionSet
                  - sso:PutInlinePolicyToPermissionSet
                  - sso:CreateAccountAssignment
                Effect: Allow
                Resource: "*"
                Sid: AssignSSO
            Version: "2012-10-17"
          PolicyName: AccessHandlerSSOPolicy
Outputs:
  RoleARN:
    Value:
      Fn::GetAtt:
        - CommonFateAccessHandlerSSORole
        - Arn

Using the AWS CLI

If you have the AWS CLI installed and can deploy cloudformation you can run the following commands to deploy this stack. Ensure you have credentials for the same account that Common Fate is deployed to and that AWS_REGION environment variable is set correctly, we recommend deploying this role to the same region as your Common Fate stack.

aws cloudformation deploy --template-file common-fate-access-handler-ecs-exec-sso-role.yml --stack-name Common-Fate-Access-Handler-ECS-Exec-SSO-Role --capabilities CAPABILITY_IAM

Once the stack is deployed, you can retrieve the role ARN by running the following command.

aws cloudformation describe-stacks --stack-name Common-Fate-Access-Handler-ECS-Exec-SSO-Role --query "Stacks[0].Outputs[0].OutputValue"

Using the AWS Console

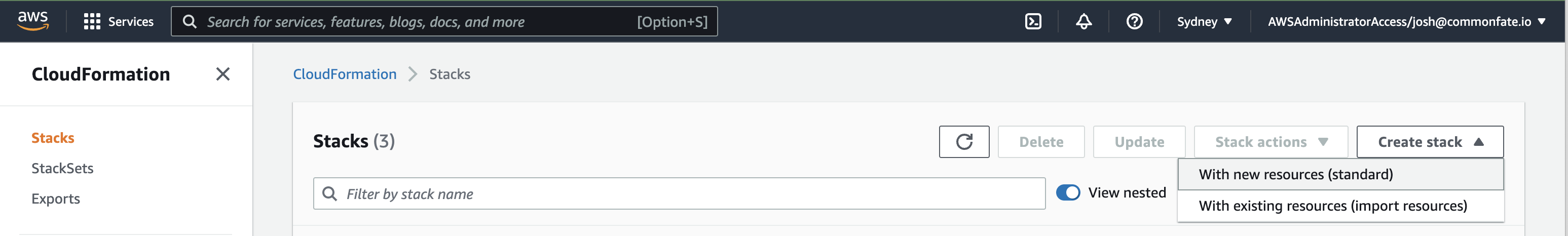

Open the AWS Console to Cloudformation in the root account of your AWS organization and click Create stack then select with new resources (standard) from the menu.

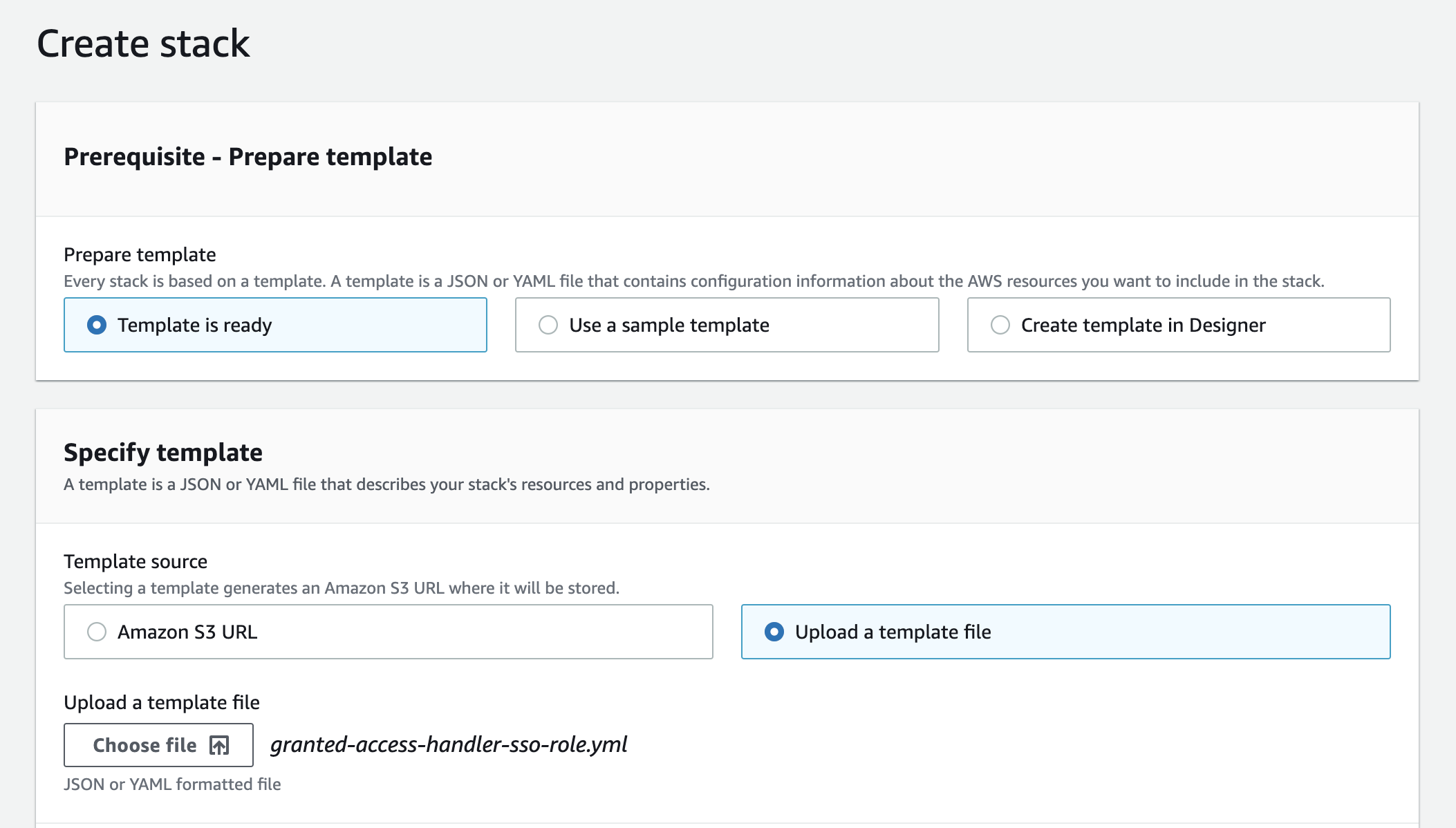

Upload the template file

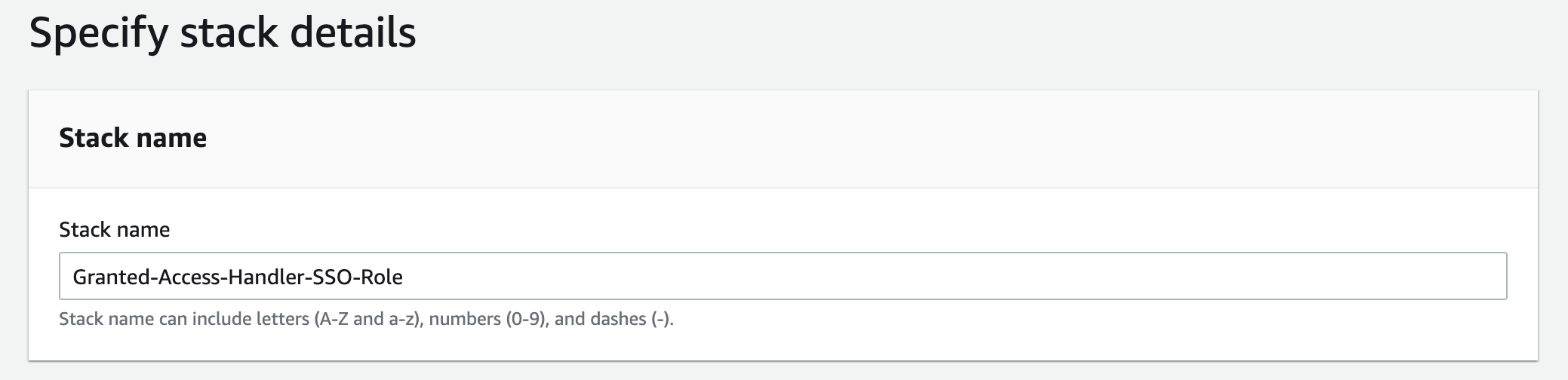

Name the stack 'Common-Fate-Access-Handler-ECS-Exec-SSO-Role'

Click Next

Click Next

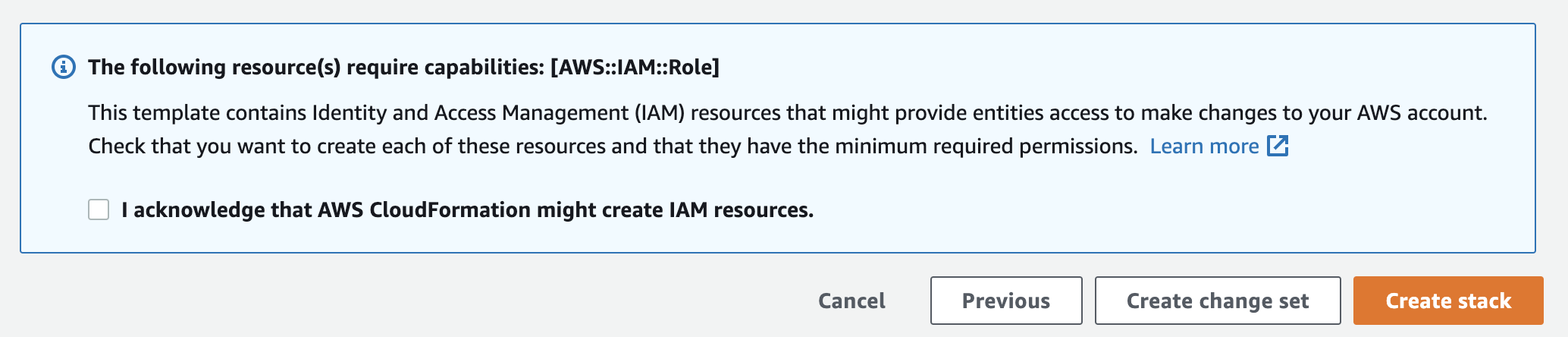

Acknowledge the IAM role creation check box and click Create Stack

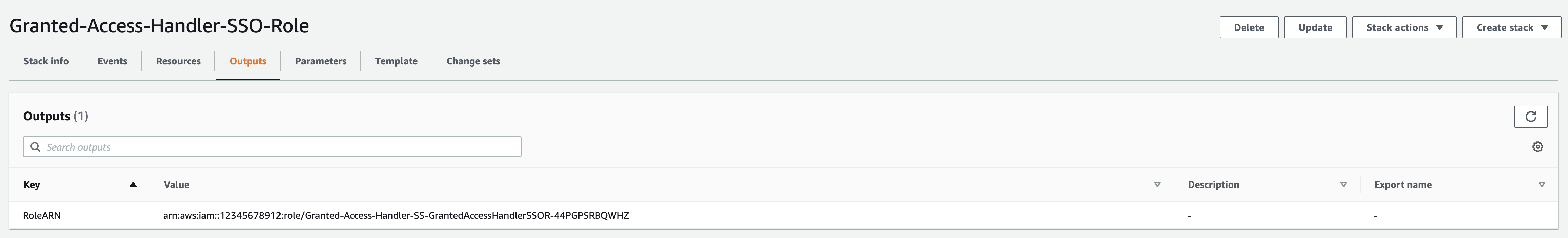

Copy the RoleARN output from the stack and paste it in the ssoRoleArn config value on the right.

Create an ECS IAM role

Configuration Fields

This step will guide you through collecting the values for these fields required to setup your provider.

Field	Description
ecsRoleArn	The ARN of the AWS IAM Role with permission to read ECS

This Access Provider requires permissions to read ECS properties.

The following instructions will help you to setup the required IAM Role with a trust relationship that allows only the Common Fate Access Handler to assume the role.

This role should be created in the same account where your cluster is deployed.

Copy the following YAML and save it as 'common-fate-access-handler-ecs-exec-ecs-role.yml'.

We recommend saving this alongside your deployment.yml file in source control.

Resources:
  CommonFateAccessHandlerECSRole:
    Type: AWS::IAM::Role
    Properties:
      AssumeRolePolicyDocument:
        Statement:
          - Action: sts:AssumeRole
            Effect: Allow
            Principal:
              AWS: "{{ Access Handler Execution Role ARN }}"
        Version: "2012-10-17"
      Description: This role grants read access to ECS for the Common Fate Access Handler.
      Policies:
        - PolicyName: AccessHandlerECSPolicy
          PolicyDocument:
            Statement:
              - Action:
                  - ecs:ListTasks
                  - ecs:ListTaskDefinitionFamilies
                  - ecs:DescribeTasks
                  - ecs:DescribeClusters
                  - cloudtrail:LookupEvents
                Effect: Allow
                Resource: "*"
                Sid: ReadECS
            Version: "2012-10-17"
Outputs:
  RoleARN:
    Value:
      Fn::GetAtt:
        - CommonFateAccessHandlerECSRole
        - Arn

Using the AWS CLI

If you have the AWS CLI installed and can deploy cloudformation you can run the following commands to deploy this stack. Ensure you have credentials for the same account that Common Fate is deployed to and that AWS_REGION environment variable is set correctly, we recommend deploying this role to the same region as your Common Fate stack.

aws cloudformation deploy --template-file common-fate-access-handler-ecs-exec-ecs-role.yml --stack-name Common-Fate-Access-Handler-ECS-Exec-ECS-Role --capabilities CAPABILITY_IAM

Once the stack is deployed, you can retrieve the role ARN by running the following command.

aws cloudformation describe-stacks --stack-name Common-Fate-Access-Handler-ECS-Exec-ECS-Role --query "Stacks[0].Outputs[0].OutputValue"

Using the AWS Console

Open the AWS Console to Cloudformation in the same account that your ECS cluster is running in and click Create stack then select with new resources (standard) from the menu.

Upload the template file

Name the stack 'Common-Fate-Access-Handler-ECS-Exec-ECS-Role'

Click Next

Click Next

Acknowledge the IAM role creation check box and click Create Stack

Copy the RoleARN output from the stack and paste it in the ssoRoleArn config value on the right.

Finalizing Your Deployment

Configuration Fields

This step will guide you through collecting the values for these fields required to setup your provider.

Field	Description

Setting up Python shell access

If you aren't using interactive Python shells on your ECS tasks, skip this step.

The following instructions detail how to install the granted-flask library for audited Python shell access.

Installing the Python library

Add granted-flask to your Docker container's Python dependencies. This will depend on what dependency management approach you use. We've given an example below for requirements.txt:

pip install granted-flask
pip freeze > requirements.txt

Set the GRANTED_WEBHOOK_URL environment variable

A GRANTED_WEBHOOK_URL environment variable must be provided to the ECS task pointing to your Common Fate deployment URL.

To find your webhook URL open a terminal at the directory containing your deployment.yml file. Then run:

gconfig output WebhookUrl

Update the task definition of the ECS container with the following environment variable:

GRANTED_WEBHOOK_URL=<Webhook URL from the gconfig output>
